Our tanks can be constructed in a variety of locations and for various uses. Below car parks, driveways and even under tennis courts are just to name a few. Underground and above ground water tanks is our speciality.

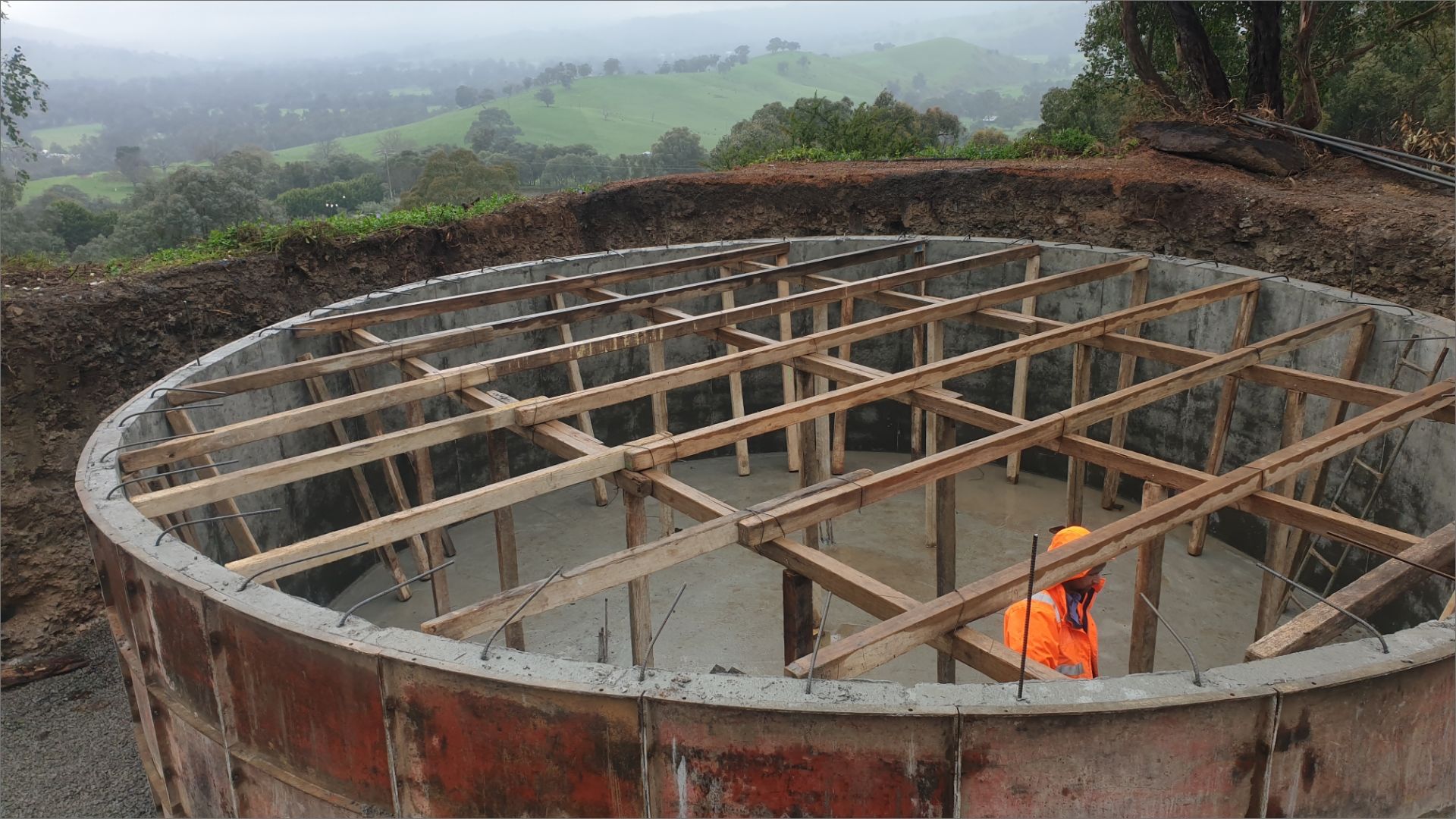

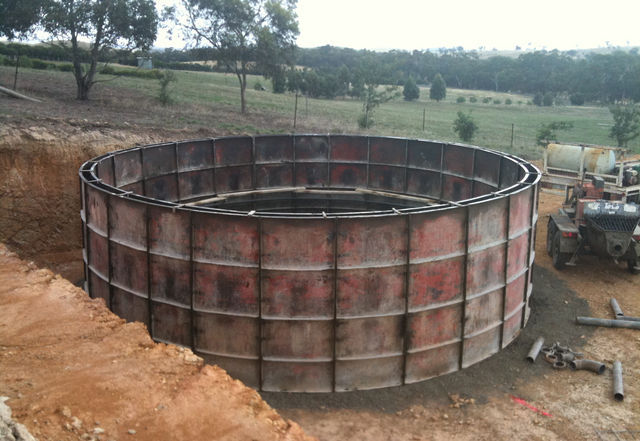

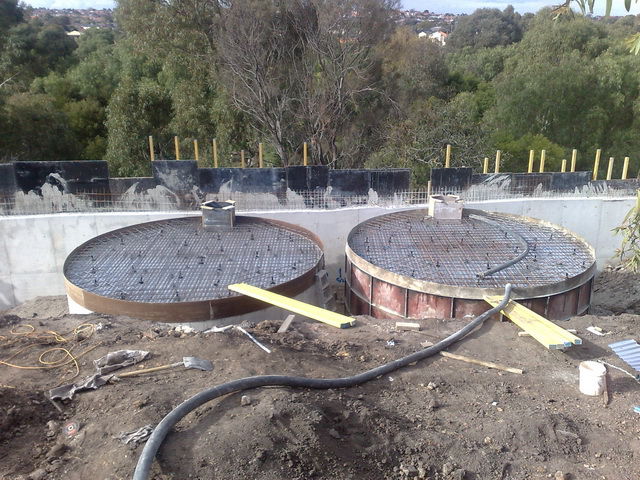

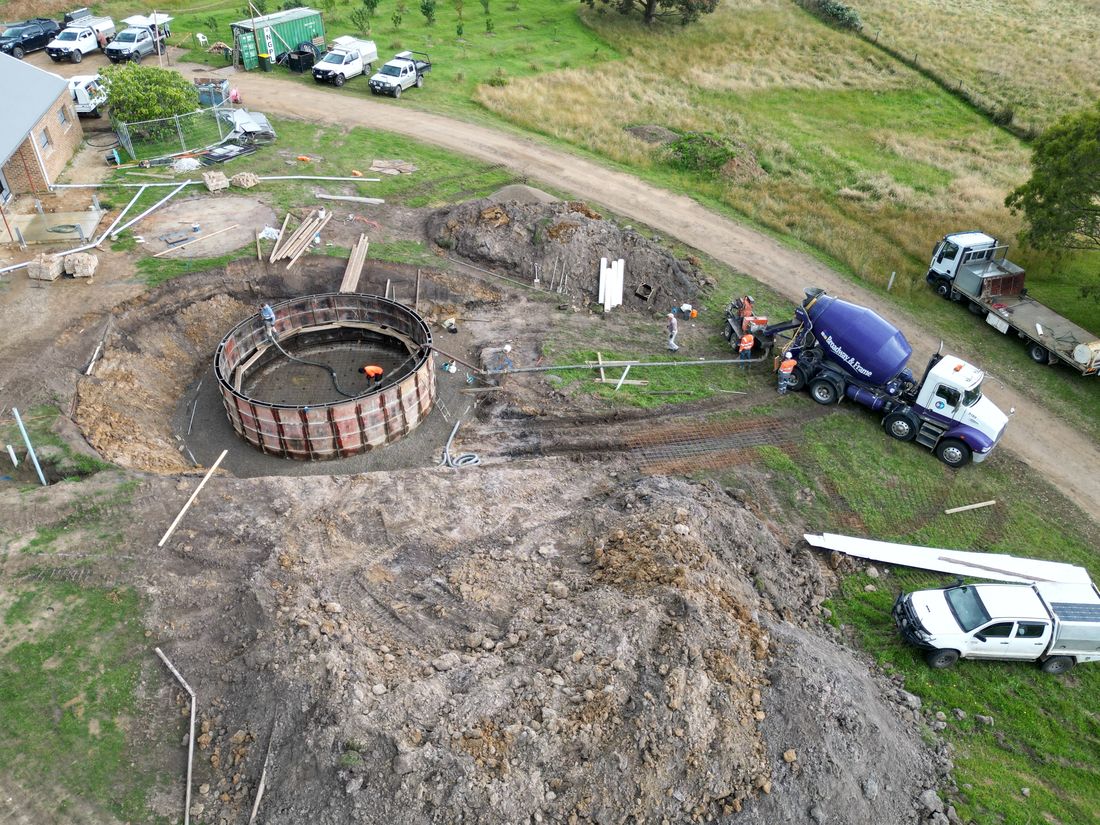

Concrete Tank ConstructionArmstrong Concrete Water Tanks are built for strength and longevity. Concrete water tanks are constructed on site with a typical turn around of 3-4 days (weather permitting). Please note our tanks can be constructed in a variety of locations and for various uses. Below car parks, driveways and even under tennis courts are just to name a few. Underground and above ground water tanks is our speciality.

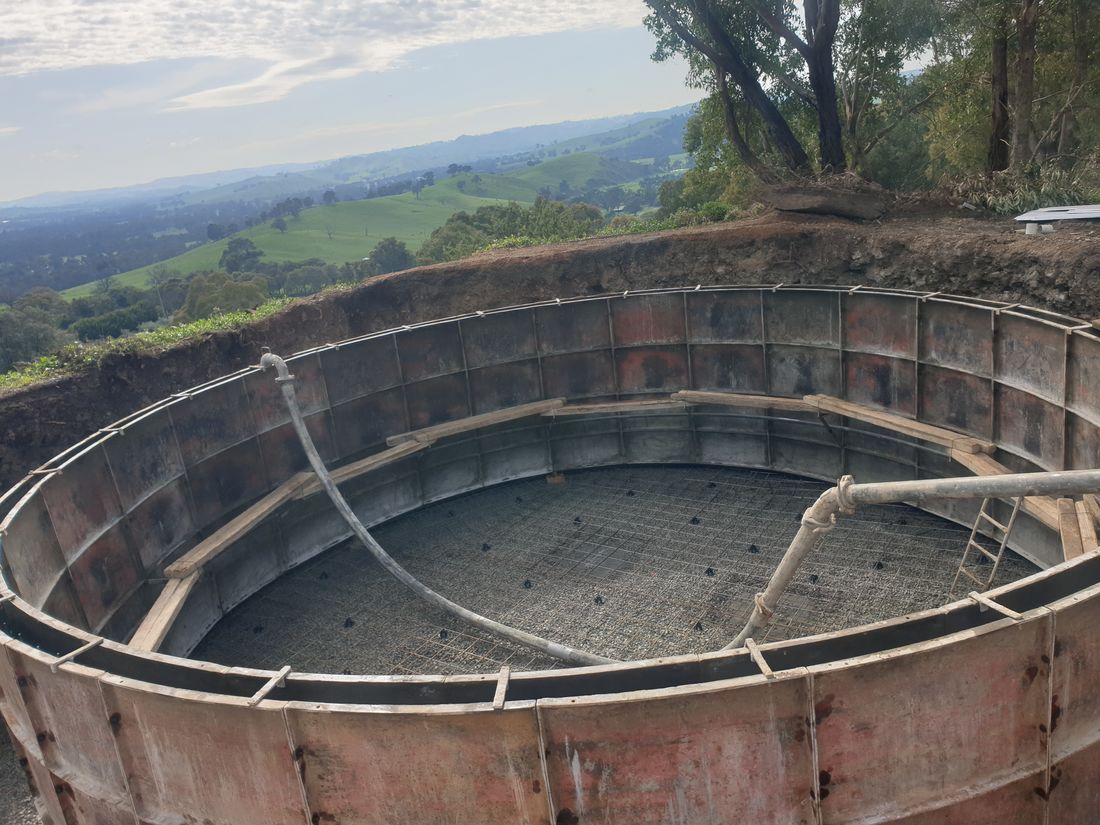

Water tanks are poured using fully vibrated 32MPa rated concrete. Our walls and floors are a continuous pour ensuring strength and stability.
A standard Armstrong Concrete Water Tank will include:
* Tank specifications will vary depending on customer requirements* |  |
 | Residential Concrete Water TanksOur residential concrete water tanks are meticulously designed to harmonise with your home, offering an ideal solution for rainwater harvesting, daily water needs, and safe drinking water storage. The seamless integration of efficiency and aesthetic appeal makes these tanks a practical and visually pleasing choice for residential spaces. |

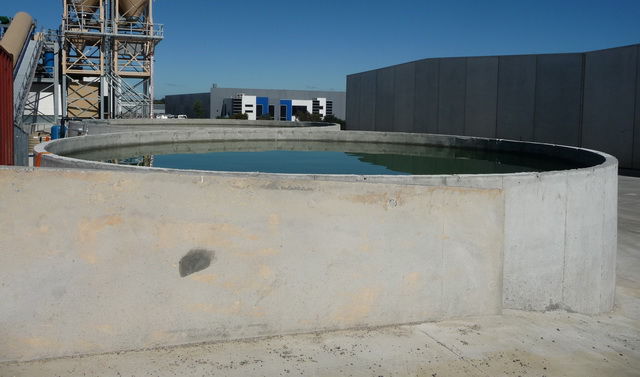

Industrial Concrete Water Tanks/ Commercial Concrete Water Tanks Engineered to cater to the extensive demands of industrial and commercial settings, these tanks ensure a continuous and dependable water supply. This encompasses potable water, playing a crucial role in maintaining operational efficiency and fostering the well-being of employees. |  |

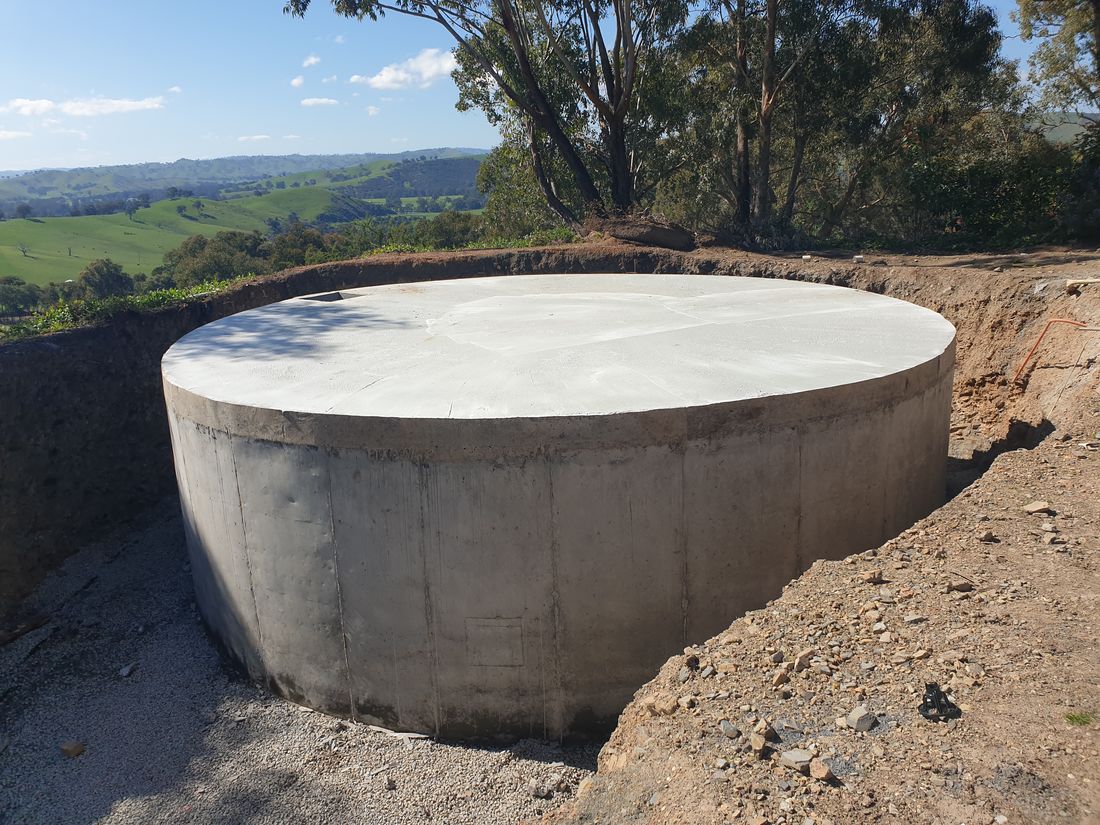

 | Underground Concrete Water TankSuited for urban environments, our Underground concrete water tanks are meticulously designed to maximise space efficiency while seamlessly integrating with your property's aesthetics. These tanks offer a discreet and highly efficient solution for water storage, ensuring the safety and quality of stored drinking water. |
Rural Concrete Water Tanks Tailored for the challenging conditions of the Australian countryside, our rural concrete water tanks are meticulously designed to offer dependable water storage solutions for agricultural purposes, livestock, and safe drinking water in remote areas. The focus on durability and resilience ensures optimal performance in rugged environments. |  |
 | Above-ground Concrete Water TankOur above-ground concrete water tank tanks are designed for easy access and adaptability, catering to a range of settings. They are particularly well-suited for storing drinking water and accommodating various other uses. The emphasis on ease of maintenance and versatility ensures these tanks seamlessly integrate into diverse applications, making them a practical choice for different purposes. |

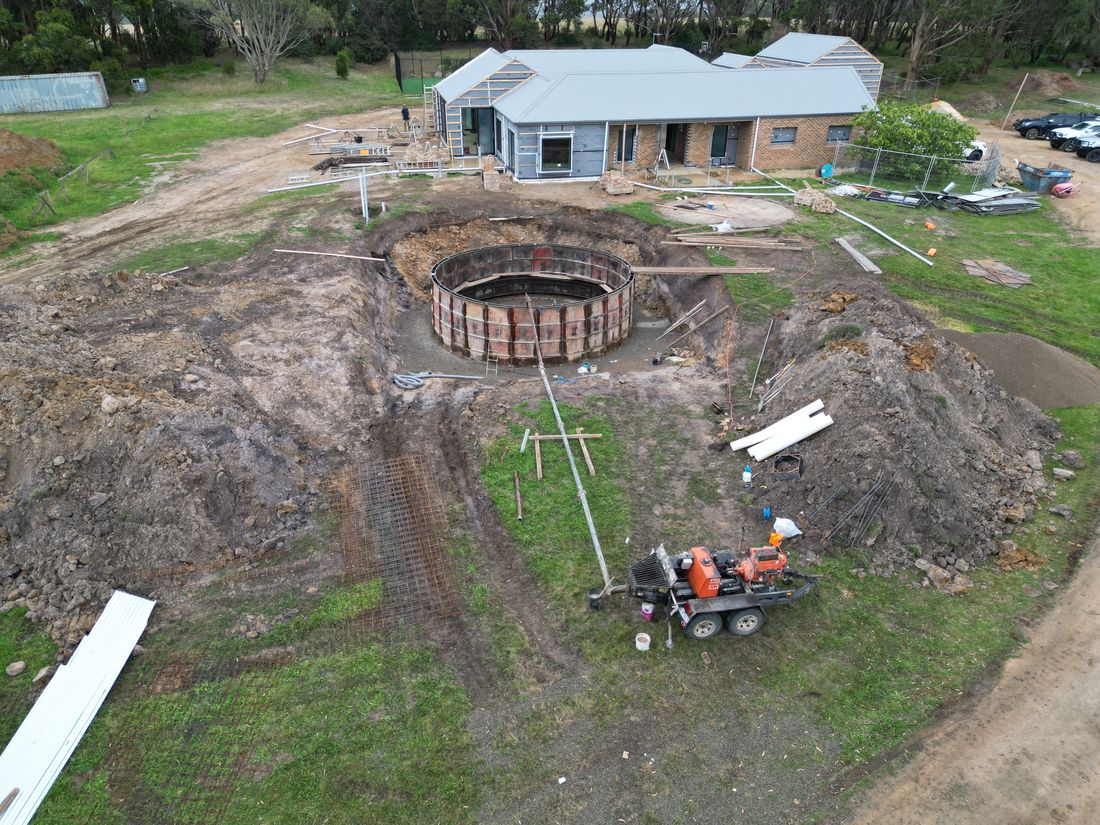

Site PreparationThe first stage of the construction of your Armstrong Concrete Water Tank is site preparation.
For a trouble free construction we require our clients to adhere to the following steps:
| |
Concrete Water Tank Sizes
Below are our standard tank sizes built to Australian standards. Tanks may vary depending on specifications and requirements.
| Tank Sizes (in Litres) | Tank Diameter | Site Diameter | Height | Floor Thickness | Wall Thickness |
| 20,000 | 3.9m | 5.8m | 2.3m | 150mm | 140mm |
| 35,000 | 4.9m | 6.8m | 2.5m | 150mm | 140mm |
| 40,000 | 5.2m | 7.1m | 2.5m | 150mm | 140mm |
| 45,000 | 5.5m | 7.4m | 2.5m | 150mm | 140mm |
| 50,000 | 5.8m | 7.7m | 2.5m | 150mm | 140mm |
| 55,000 | 6.1m | 8.0m | 2.5m | 150mm | 140mm |
| 63,000 | 6.4m | 8.3m | 2.5m | 150mm | 140mm |
| 70,000 | 6.7m | 8.6m | 2.5m | 150mm | 140mm |
| 84,000 | 7.2m | 9.1m | 2.5m | 150mm | 140mm |
| 90,000 | 7.5m | 9.5m | 2.5m | 150mm | 140mm |
| 97,000 | 7.8m | 9.8m | 2.5m | 150mm | 140mm |
| 113,000 | 8.6m | 10.4m | 2.5m | 150mm | 140mm |
| 130,000 | 9.2m | 11.3m | 2.5m | 150mm | 140mm |
| 150,000 | 9.8m | 11.9m | 2.5m | 150mm | 140mm |
Contact Us Today
Please feel free to contact us if you require further site preparation advice
